SimXPro Universal wheel deck
Sold by SimXPro
Including VAT. Excluding any shipping costs.
Specialist in motorsport equipment
Secure payments
Money back guarantee!
Global Shipping
Warehouse in Holland
MOTORSPORTWEBSHOP | SIMXPRO
Support a compatible bottom-mounted wheelbase with the universal wheel deck. Its profile-based arrangement allows the steering height and angle to be set around your seated driving position.
Product details and specifications

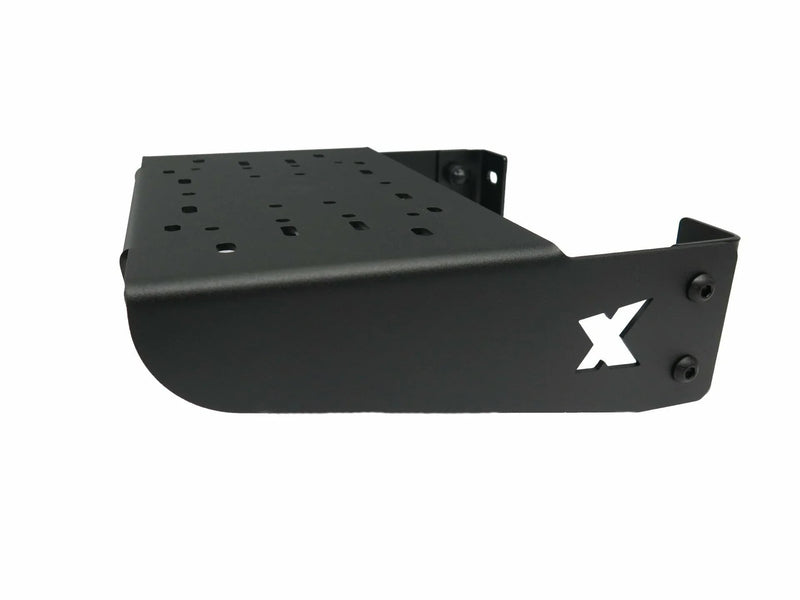

SimXPro Universal Wheel Deck
Create a rigid and adjustable mounting platform for your wheelbase. Designed for installation on any vertical 40 × 80 mm cross-profile, this wheel deck is suitable for SimXPro cockpits and compatible DIY aluminium-profile rigs. Its wide tilt range allows the steering angle to be adjusted for a comfortable and consistent driving position.
This is the standard wheel mounting solution supplied with the SimXPro R80 and SimXPro X80 cockpits.
Compatibility and Specifications
- Material: 3 mm hardened steel
- Finish: Matt black
- Compatible profile: Vertical 40 × 80 mm cross-profile or bigger
- Universal bolt pattern compatible with most modern wheelbases
- Adjustable wheelbase tilt angle
Match the mount to your wheelbase
Check the exact wheelbase model and its mounting method before ordering. Front mounting, side mounting and a bottom bolt pattern are different interfaces, even when the products belong to the same brand. Measure the available spacing between the cockpit uprights and compare it with the width stated for this mount.
Set wheel height, reach and tilt from your normal seated position. Leave room for the wheel rim, your knees and the cables at the rear of the wheelbase. A mechanical mount does not change the wheelbase’s PC or console support. Use the wheelbase manufacturer’s fixing guidance and the correct fasteners for the chosen installation.
Build your SimXPro setup
Explore related components and compare their individual mounting dimensions before combining parts:
- SimXPro X80 Sim Racing Cockpit
- SimXPro XT120 Sim Racing Cockpit
- SimXPro Universal flat wheeldeck - 580 - 600 mm
Browse Wheelbase Mounts & Clamps for more options, explore the complete SimXPro range, or plan the rest of your simulator in Sim Racing.
